Sessions¶
A live agent is not a request and a response. It is a connection that stays open while
the user talks, listens, interrupts, and falls silent. This page covers the machinery
that keeps that connection alive: the lifecycle of a live application, the queue you
push user input into, the run_live() loop you read from, and what happens when a
connection drops or a conversation outgrows the model's context window.
Read this page when you are wiring up a live agent for the first time, or when you need sessions to survive network failures and long conversations. For what comes back out of the loop, see Events. For the knobs that shape a session's behavior, see Configuration.
Application lifecycle¶
ADK Gemini Live API Toolkit integrates Live API session into the ADK framework's application lifecycle. This integration creates a four-phase lifecycle that combines ADK's agent management with Live API's real-time streaming capabilities:
- Phase 1: Application Initialization (Once at Startup)
-
ADK Application initialization
- Create an Agent: for interacting with users, utilize external tools, and coordinate with other agents.
- Create a SessionService: for getting or creating ADK
Session - Create a Runner: for providing a runtime for the Agent
-
Phase 2: Session Initialization (Once per User Session)
- ADK
Sessioninitialization:- Get or Create an ADK
Sessionusing theSessionService
- Get or Create an ADK
-
ADK Gemini Live API Toolkit initialization:
- Create a RunConfig for configuring ADK Gemini Live API Toolkit
- Create a LiveRequestQueue for sending user messages to the
Agent - Start a run_live() event loop
-
Phase 3: Bidi-streaming with
run_live()event loop (One or More Times per User Session) - Upstream: User sends message to the agent with
LiveRequestQueue -
Downstream: Agent responds to the user with
Event -
Phase 4: Terminate Live API session (One or More Times per User Session)
LiveRequestQueue.close()
Lifecycle Flow Overview:
graph TD
A[Phase 1: Application Init<br/>Once at Startup] --> B[Phase 2: Session Init<br/>Per User Connection]
B --> C[Phase 3: Bidi-streaming<br/>Active Communication]
C --> D[Phase 4: Terminate<br/>Close Session]
D -.New Connection.-> B
style A fill:#e3f2fd
style B fill:#e8f5e9
style C fill:#fff3e0
style D fill:#ffebeeThis flowchart shows the high-level lifecycle phases and how they connect. The detailed sequence diagram below illustrates the specific components and interactions within each phase.
sequenceDiagram
participant Client
participant App as Application Server
participant Queue as LiveRequestQueue
participant Runner
participant Agent
participant API as Live API
rect rgb(230, 240, 255)
Note over App: Phase 1: Application Initialization (Once at Startup)
App->>Agent: 1. Create Agent(model, tools, instruction)
App->>App: 2. Create SessionService()
App->>Runner: 3. Create Runner(app_name, agent, session_service)
end
rect rgb(240, 255, 240)
Note over Client,API: Phase 2: Session Initialization (Every Time a User Connected)
Client->>App: 1. WebSocket connect(user_id, session_id)
App->>App: 2. get_or_create_session(app_name, user_id, session_id)
App->>App: 3. Create RunConfig(streaming_mode, modalities)
App->>Queue: 4. Create LiveRequestQueue()
App->>Runner: 5. Start run_live(user_id, session_id, queue, config)
Runner->>API: Connect to Live API session
end
rect rgb(255, 250, 240)
Note over Client,API: Phase 3: Bidi-streaming with run_live() Event Loop
par Upstream: User sends messages via LiveRequestQueue
Client->>App: User message (text/audio/video)
App->>Queue: send_content() / send_realtime()
Queue->>Runner: Buffered request
Runner->>Agent: Process request
Agent->>API: Stream to Live API
and Downstream: Agent responds via Events
API->>Agent: Streaming response
Agent->>Runner: Process response
Runner->>App: yield Event (text/audio/tool/turn)
App->>Client: Forward Event via WebSocket
end
Note over Client,API: (Event loop continues until close signal)
end
rect rgb(255, 240, 240)
Note over Client,API: Phase 4: Terminate Live API session
Client->>App: WebSocket disconnect
App->>Queue: close()
Queue->>Runner: Close signal
Runner->>API: Disconnect from Live API
Runner->>App: run_live() exits
endIn the following sections, you'll see each phase detailed, showing exactly when to create each component and how they work together. Understanding this lifecycle pattern is essential for building robust streaming applications that can handle multiple concurrent sessions efficiently.
Phase 1: Application Initialization¶
These components are created once when your application starts and shared across all streaming sessions. They define your agent's capabilities, manage conversation history, and orchestrate the streaming execution.
Define Your Agent¶
The Agent is the core of your streaming application—it defines what your AI can do, how it should behave, and which AI model powers it. You configure your agent with a specific model, tools it can use (like Google Search or custom APIs), and instructions that shape its personality and behavior.
"""Google Search Agent definition for ADK Gemini Live API Toolkit demo."""
import os
from google.adk.agents import Agent
from google.adk.tools import google_search
# Live API models with native audio support:
# - Gemini Live API: gemini-2.5-flash-native-audio-preview-12-2025
# - Gemini Live API: gemini-3.1-flash-live-preview
# - Gemini Live API (Agent Platform): gemini-live-2.5-flash-native-audio
agent = Agent(
name="google_search_agent",
model=os.getenv("DEMO_AGENT_MODEL", "gemini-2.5-flash-native-audio-preview-12-2025"),
tools=[google_search],
instruction="You are a helpful assistant that can search the web."
)
The agent instance is stateless and reusable—you create it once and use it for all streaming sessions. Agent configuration is covered in the ADK Agent documentation.
Model Availability
For the latest supported models and their capabilities, see Supported models.
Agent vs LlmAgent
Agent is the recommended shorthand for LlmAgent (both are imported from google.adk.agents). They are identical - use whichever you prefer. This guide uses Agent for brevity, but you may see LlmAgent in other ADK documentation and examples.
Define Your SessionService¶
The ADK Session manages conversation state and history across streaming sessions. It stores and retrieves session data, enabling features like conversation resumption and context persistence.
To create a Session, or get an existing one for a specified session_id, every ADK application needs to have a SessionService. For development purpose, ADK provides a simple InMemorySessionService that will lose the Session state when the application shuts down.
from google.adk.sessions import InMemorySessionService
# Define your session service
session_service = InMemorySessionService()
For production applications, choose a persistent session service based on your infrastructure:
Use DatabaseSessionService if:
- You need persistent storage with SQLite, PostgreSQL, or MySQL
- You're building single-server apps (SQLite) or multi-server deployments (PostgreSQL/MySQL)
- You want full control over data storage and backups
- Examples:
- SQLite:
DatabaseSessionService(db_url="sqlite:///./sessions.db") - PostgreSQL:
DatabaseSessionService(db_url="postgresql://user:pass@host/db")
- SQLite:
Use VertexAiSessionService if:
- You're already using Google Cloud Platform
- You want managed storage with built-in scalability
- You need tight integration with Agent Platform features
- Example:
VertexAiSessionService(project="my-project")
Both provide session persistence capabilities—choose based on your infrastructure and scale requirements. With persistent session services, the state of the Session will be preserved even after application shutdown. See the ADK Session Management documentation for more details.
Define Your Runner¶
The Runner provides the runtime for the Agent. It manages the conversation flow, coordinates tool execution, handles events, and integrates with session storage. You create one runner instance at application startup and reuse it for all streaming sessions.
from google.adk.runners import Runner
APP_NAME = "bidi-demo"
# Define your runner
runner = Runner(
app_name=APP_NAME,
agent=agent,
session_service=session_service
)
The app_name parameter is required and identifies your application in session storage. All sessions for your application are organized under this name.
Phase 2: Session Initialization¶
Get or Create Session¶
ADK Session provides a "conversation thread" of the ADK Gemini Live API Toolkit application. Just like you wouldn't start every text message from scratch, agents need context regarding the ongoing interaction. Session is the ADK object designed specifically to track and manage these individual conversation threads.
ADK Session vs Live API session¶
ADK Session (managed by SessionService) provides persistent conversation storage across multiple Bidi-streaming sessions (can spans hours, days or even months), while Live API session (managed by Live API backend) is a transient streaming context that exists only during single Bidi-streaming event loop (spans minutes or hours typically) that we will discuss later. When the loop starts, ADK initializes the Live API session with history from the ADK Session, then updates the ADK Session as new events occur.
Learn More
For a detailed comparison with sequence diagrams, see ADK Session vs Live API session.
Session Identifiers Are Application-Defined¶
Sessions are identified by three parameters: app_name, user_id, and session_id. This three-level hierarchy enables multi-tenant applications where each user can have multiple concurrent sessions.
Both user_id and session_id are arbitrary string identifiers that you define based on your application's needs. ADK performs no format validation beyond .strip() on session_id—you can use any string values that make sense for your application:
user_idexamples: User UUIDs ("550e8400-e29b-41d4-a716-446655440000"), email addresses ("alice@example.com"), database IDs ("user_12345"), or simple identifiers ("demo-user")session_idexamples: Custom session tokens, UUIDs, timestamp-based IDs ("session_2025-01-27_143022"), or simple identifiers ("demo-session")
Auto-generation: If you pass session_id=None or an empty string to create_session(), ADK automatically generates a UUID for you (e.g., "550e8400-e29b-41d4-a716-446655440000").
Organizational hierarchy: These identifiers organize sessions in a three-level structure:
This design enables scenarios like:
- Multi-tenant applications where different users have isolated conversation spaces
- Single users with multiple concurrent chat threads (e.g., different topics)
- Per-device or per-browser session isolation
Recommended Pattern: Get-or-Create¶
The recommended production pattern is to check if a session exists first, then create it only if needed. This approach safely handles both new sessions and conversation resumption:
# Get or create session (handles both new sessions and reconnections)
session = await session_service.get_session(
app_name=APP_NAME,
user_id=user_id,
session_id=session_id
)
if not session:
await session_service.create_session(
app_name=APP_NAME,
user_id=user_id,
session_id=session_id
)
This pattern works correctly in all scenarios:
- New conversations: If the session doesn't exist, it's created automatically
- Resuming conversations: If the session already exists (e.g., reconnection after network interruption), the existing session is reused with full conversation history
- Idempotent: Safe to call multiple times without errors
Important: The session must exist before calling runner.run_live() with the same identifiers. If the session doesn't exist, run_live() will raise ValueError: Session not found.
Create RunConfig¶
RunConfig defines the streaming behavior for this specific session—which modalities to use (text or audio), whether to enable transcription, voice activity detection, proactivity, and other advanced features.
from google.adk.agents.run_config import RunConfig
from google.genai import types
# Native audio models require AUDIO response modality with audio transcription
response_modalities = ["AUDIO"]
run_config = RunConfig(
response_modalities=response_modalities,
input_audio_transcription=types.AudioTranscriptionConfig(),
output_audio_transcription=types.AudioTranscriptionConfig(),
session_resumption=types.SessionResumptionConfig()
)
RunConfig is session-specific—each streaming session can have different configuration. For example, one user might prefer text-only responses while another uses voice mode. See Configuration for complete configuration options.
Create LiveRequestQueue¶
LiveRequestQueue is the communication channel for sending messages to the agent during streaming. It's a thread-safe async queue that buffers user messages (text content, audio blobs, activity signals) for orderly processing.
from google.adk.agents.live_request_queue import LiveRequestQueue
live_request_queue = LiveRequestQueue()
LiveRequestQueue is session-specific and stateful—you create a new queue for each streaming session and close it when the session ends. Unlike Agent and Runner, queues cannot be reused across sessions.
One Queue Per Session
Never reuse a LiveRequestQueue across multiple streaming sessions. Each call to run_live() requires a fresh queue. Reusing queues can cause message ordering issues and state corruption.
The close signal persists in the queue (see live_request_queue.py:66-67) and terminates the sender loop (see base_llm_flow.py:628-630). Reusing a queue would carry over this signal and any remaining messages from the previous session.
Phase 3: Bidi-streaming with run_live() event loop¶
Once the streaming loop is running, you can send messages to the agent and receive responses concurrently—this is Bidi-streaming in action. The agent can be generating a response while you're sending new input, enabling natural interruption-based conversation.
Send Messages to the Agent¶
Use LiveRequestQueue methods to send different types of messages to the agent during the streaming session:
from google.genai import types
# Send text content
content = types.Content(parts=[types.Part(text=json_message["text"])])
live_request_queue.send_content(content)
# Send audio blob
audio_blob = types.Blob(
mime_type="audio/pcm;rate=16000",
data=audio_data
)
live_request_queue.send_realtime(audio_blob)
These methods are non-blocking—they immediately add messages to the queue without waiting for processing. This enables smooth, responsive user experiences even during heavy AI processing.
See Sending different message types for detailed API documentation.
Receive and Process Events¶
The run_live() async generator continuously yields Event objects as the agent processes input and generates responses. Each event represents a discrete occurrence—partial text generation, audio chunks, tool execution, transcription, interruption, or turn completion.
async for event in runner.run_live(
user_id=user_id,
session_id=session_id,
live_request_queue=live_request_queue,
run_config=run_config
):
event_json = event.model_dump_json(exclude_none=True, by_alias=True)
await websocket.send_text(event_json)
Events are designed for streaming delivery—you receive partial responses as they're generated, not just complete messages. This enables real-time UI updates and responsive user experiences.
See Events for comprehensive event handling patterns.
Phase 4: Terminate Live API session¶
When the streaming session should end (user disconnects, conversation completes, timeout occurs), close the queue gracefully to signal termination to terminate the Live API session.
Close the Queue¶
Send a close signal through the queue to terminate the streaming loop:
live_request_queue.close()
This signals run_live() to stop yielding events and exit the async generator loop. The agent completes any in-progress processing and the streaming session ends cleanly.
LiveRequestQueue and LiveRequest¶
The LiveRequestQueue is your primary interface for sending messages to the Agent in streaming conversations. Rather than managing separate channels for text, audio, and control signals, ADK provides a unified LiveRequest container that handles all message types through a single, elegant API:
class LiveRequest(BaseModel):
content: Optional[Content] = None # Text-based content and structured data
blob: Optional[Blob] = None # Audio/video data and binary streams
activity_start: Optional[ActivityStart] = None # Signal start of user activity
activity_end: Optional[ActivityEnd] = None # Signal end of user activity
close: bool = False # Graceful connection termination signal
This streamlined design handles every streaming scenario you'll encounter. The content and blob fields handle different data types, the activity_start and activity_end fields enable activity signaling, and the close flag provides graceful termination semantics.
The content and blob fields are mutually exclusive—only one can be set per LiveRequest. While ADK does not enforce this client-side and will attempt to send both if set, the Live API backend will reject this with a validation error. ADK's convenience methods send_content() and send_realtime() automatically ensure this constraint is met by setting only one field, so using these methods (rather than manually creating LiveRequest objects) is the recommended approach.
The following diagram illustrates how different message types flow from your application through LiveRequestQueue methods, into LiveRequest containers, and finally to the Live API:
graph LR
subgraph "Application"
A1[User Text Input]
A2[Audio Stream]
A3[Activity Signals]
A4[Close Signal]
end
subgraph "LiveRequestQueue Methods"
B1[send_content<br/>Content]
B2[send_realtime<br/>Blob]
B3[send_activity_start<br/>ActivityStart]
B3b[send_activity_end<br/>ActivityEnd]
B4[close<br/>close=True]
end
subgraph "LiveRequest Container"
C1[content: Content]
C2[blob: Blob]
C3[activity_start/end]
C4[close: bool]
end
subgraph "Gemini Live API"
D[WebSocket Connection]
end
A1 --> B1 --> C1 --> D
A2 --> B2 --> C2 --> D
A3 --> B3 --> C3 --> D
A3 --> B3b --> C3
A4 --> B4 --> C4 --> DSending Different Message Types¶
LiveRequestQueue provides convenient methods for sending different message types to the agent. This section demonstrates practical patterns for text messages, audio/video streaming, activity signals for manual turn control, and session termination.
send_content(): Sends Text With Turn-by-Turn¶
The send_content() method sends text messages in turn-by-turn mode, where each message represents a discrete conversation turn. This signals a complete turn to the model, triggering immediate response generation.
content = types.Content(parts=[types.Part(text=json_message["text"])])
live_request_queue.send_content(content)
Using Content and Part with ADK Gemini Live API Toolkit:
-
Content(google.genai.types.Content): A container that represents a single message or turn in the conversation. It holds an array ofPartobjects that together compose the complete message. -
Part(google.genai.types.Part): An individual piece of content within a message. For ADK Gemini Live API Toolkit with Live API, you'll use: text: Text content (including code) that you send to the model
In practice, most messages use a single text Part for ADK Gemini Live API Toolkit. The multi-part structure is designed for scenarios like: - Mixing text with function responses (automatically handled by ADK) - Combining text explanations with structured data - Future extensibility for new content types
For Live API, multimodal inputs (audio/video) use different mechanisms (see send_realtime() below), not multi-part Content.
Content and Part Usage in ADK Gemini Live API Toolkit
While the Gemini API Part type supports many fields (inline_data, file_data, function_call, function_response, etc.), most are either handled automatically by ADK or use different mechanisms in Live API:
- Function calls: ADK automatically handles the function calling loop - receiving function calls from the model, executing your registered functions, and sending responses back. You don't manually construct these.
- Images/Video: Do NOT use
send_content()withinline_data. Instead, usesend_realtime(Blob(mime_type="image/jpeg", data=...))for continuous streaming. See How to use image and video.
send_realtime(): Sends Audio, Image and Video in Real-Time¶
The send_realtime() method sends binary data streams—primarily audio, image and video—flow through the Blob type, which handles transmission in realtime mode. Unlike text content that gets processed in turn-by-turn mode, blobs are designed for continuous streaming scenarios where data arrives in chunks. You provide raw bytes, and Pydantic automatically handles base64 encoding during JSON serialization for safe network transmission (configured in LiveRequest.model_config). The MIME type helps the model understand the content format.
audio_blob = types.Blob(
mime_type="audio/pcm;rate=16000",
data=audio_data
)
live_request_queue.send_realtime(audio_blob)
Learn More
For complete details on audio, image and video specifications, formats, and best practices, see Audio and video.
Activity Signals¶
Activity signals (ActivityStart/ActivityEnd) can ONLY be sent when automatic (server-side) Voice Activity Detection is explicitly disabled in your RunConfig. Use them when your application requires manual voice activity control, such as:
- Push-to-talk interfaces: User explicitly controls when they're speaking (e.g., holding a button)
- Noisy environments: Background noise makes automatic VAD unreliable, so you use client-side VAD or manual control
- Client-side VAD: You implement your own VAD algorithm on the client to reduce network overhead by only sending audio when speech is detected
- Custom interaction patterns: Non-speech scenarios like gesture-triggered interactions or timed audio segments
What activity signals tell the model:
ActivityStart: "The user is now speaking - start accumulating audio for processing"ActivityEnd: "The user has finished speaking - process the accumulated audio and generate a response"
Without these signals (when VAD is disabled), the model doesn't know when to start/stop listening for speech, so you must explicitly mark turn boundaries.
Sending Activity Signals:
from google.genai import types
# Manual activity signal pattern (e.g., push-to-talk)
live_request_queue.send_activity_start() # Signal: user started speaking
# Stream audio chunks while user holds the talk button
while user_is_holding_button:
audio_blob = types.Blob(mime_type="audio/pcm;rate=16000", data=audio_chunk)
live_request_queue.send_realtime(audio_blob)
live_request_queue.send_activity_end() # Signal: user stopped speaking
Default behavior (automatic VAD): If you don't send activity signals, Live API's built-in VAD automatically detects speech boundaries in the audio stream you send via send_realtime(). This is the recommended approach for most applications.
Learn More
For detailed comparison of automatic VAD vs manual activity signals, including when to disable VAD and best practices, see Voice activity detection.
Control Signals¶
The close signal provides graceful termination semantics for streaming sessions. It signals the system to cleanly close the model connection and end the Bidi-stream. In ADK Gemini Live API Toolkit, your application is responsible for sending the close signal explicitly:
Manual closure in Bidi-streaming: When using runner.run_live(), your application should manually call close() when the session terminates or when errors occur. This practice minimizes session resource usage.
Automatic closure under CFC: There is one case where ADK closes the queue for you. When
RunConfig.support_cfc=True, run_async() internally opens a Live API connection and creates
its own LiveRequestQueue; ADK closes that internal queue on the first turn_complete=True
response (see base_llm_flow.py:1509-1512).
This applies only to that ADK-internal queue — plain run_async() with StreamingMode.SSE
has no LiveRequestQueue at all, and the queue you pass to run_live() is never closed for
you.
See Bidi-streaming or SSE for detailed comparison and when to use each.
try:
logger.debug("Starting asyncio.gather for upstream and downstream tasks")
await asyncio.gather(
upstream_task(),
downstream_task()
)
logger.debug("asyncio.gather completed normally")
except WebSocketDisconnect:
logger.debug("Client disconnected normally")
except Exception as e:
logger.error(f"Unexpected error in streaming tasks: {e}", exc_info=True)
finally:
# Always close the queue, even if exceptions occurred
logger.debug("Closing live_request_queue")
live_request_queue.close()
What happens if you don't call close()?
Although ADK cleans up local resources automatically, failing to call close() in Bidi-streaming prevents sending a graceful termination signal to the Live API, which will then receive an abrupt disconnection after certain timeout period. This can lead to "zombie" Live API sessions that remain open on the cloud service, even though your application has finished with them. These stranded sessions may significantly decrease the number of concurrent sessions your application can handle, as they continue to count against your quota limits until they eventually timeout.
Learn More
For comprehensive error handling patterns during streaming, including when to use break vs continue and handling different error types, see Error events.
Concurrency and Thread Safety¶
Understanding how LiveRequestQueue handles concurrency is essential for building reliable streaming applications. The queue is built on asyncio.Queue, which means it's safe for concurrent access within the same event loop thread (the common case), but requires special handling when called from different threads (the advanced case). This section explains the design choices behind LiveRequestQueue's API, when you can safely use it without extra precautions, and when you need thread-safety mechanisms like loop.call_soon_threadsafe().
Async Queue Management¶
LiveRequestQueue uses synchronous methods (send_content(), send_realtime()) instead of async methods, even though the underlying queue is consumed asynchronously. This design choice uses asyncio.Queue.put_nowait() - a non-blocking operation that doesn't require await.
Why synchronous send methods? Convenience and simplicity. You can call them from anywhere in your async code without await:
async def upstream_task() -> None:
"""Receives messages from WebSocket and sends to LiveRequestQueue."""
while True:
message = await websocket.receive()
if "bytes" in message:
audio_data = message["bytes"]
audio_blob = types.Blob(
mime_type="audio/pcm;rate=16000",
data=audio_data
)
live_request_queue.send_realtime(audio_blob)
elif "text" in message:
text_data = message["text"]
json_message = json.loads(text_data)
if json_message.get("type") == "text":
content = types.Content(parts=[types.Part(text=json_message["text"])])
live_request_queue.send_content(content)
This pattern mixes async I/O operations with sync CPU operations naturally. The send methods return immediately without blocking, allowing your application to stay responsive.
Best Practice: Create Queue in Async Context¶
Always create LiveRequestQueue within an async context (async function or coroutine) to ensure it uses the correct event loop:
# ✅ Recommended - Create in async context
async def main():
queue = LiveRequestQueue() # Uses existing event loop from async context
# This is the preferred pattern - ensures queue uses the correct event loop
# that will run your streaming operations
# ❌ Not recommended - Creates event loop automatically
queue = LiveRequestQueue() # Works but ADK auto-creates new loop
# This works due to ADK's safety mechanism, but may cause issues with
# loop coordination in complex applications or multi-threaded scenarios
Why this matters: LiveRequestQueue requires an event loop to exist when instantiated. ADK includes a safety mechanism that auto-creates a loop if none exists, but relying on this can cause unexpected behavior in multi-threaded scenarios or with custom event loop configurations.
Message Ordering Guarantees¶
LiveRequestQueue provides predictable message delivery behavior:
| Guarantee | Description | Impact |
|---|---|---|
| FIFO ordering | Messages processed in send order (guaranteed by underlying asyncio.Queue) |
Maintains conversation context and interaction consistency |
| No coalescing | Each message delivered independently | No automatic batching—each send operation creates one request |
| Unbounded by default | Queue accepts unlimited messages without blocking | Benefit: Simplifies client code (no blocking on send) Risk: Memory growth if sending faster than processing Mitigation: Monitor queue depth in production |
Production Tip: For high-throughput audio/video streaming, monitor
live_request_queue._queue.qsize()to detect backpressure. If the queue depth grows continuously, slow down your send rate or implement batching. Note:_queueis an internal attribute and may change in future releases; use with caution.
How run_live() Works¶
run_live() is an async generator that streams conversation events in real-time. It yields events immediately as they're generated—no buffering, no polling, no callbacks. Events are streamed without internal buffering. Overall memory depends on session persistence (e.g., in-memory vs database), making it suitable for both quick exchanges and extended sessions.
Method Signature and Flow¶
Usage:
# The method signature reveals the thoughtful design
async def run_live(
self,
*, # Keyword-only arguments
user_id: Optional[str] = None, # User identification (required unless session provided)
session_id: Optional[str] = None, # Session tracking (required unless session provided)
live_request_queue: LiveRequestQueue, # The bidirectional communication channel
run_config: Optional[RunConfig] = None, # Streaming behavior configuration
session: Optional[Session] = None, # Deprecated: use user_id and session_id instead
) -> AsyncGenerator[Event, None]: # Generator yielding conversation events
As its signature tells, every streaming conversation needs identity (user_id), continuity (session_id), communication (live_request_queue), and configuration (run_config). The return type—an async generator of Events—promises real-time delivery without overwhelming system resources.
sequenceDiagram
participant Client
participant Runner
participant Agent
participant LLMFlow
participant Gemini
Client->>Runner: runner.run_live(user_id, session_id, queue, config)
Runner->>Agent: agent.run_live(context)
Agent->>LLMFlow: _llm_flow.run_live(context)
LLMFlow->>Gemini: Connect and stream
loop Continuous Streaming
Gemini-->>LLMFlow: LlmResponse
LLMFlow-->>Agent: Event
Agent-->>Runner: Event
Runner-->>Client: Event (yield)
endBasic Usage Pattern¶
The simplest way to consume events from run_live() is to iterate over the async generator with a for-loop:
async for event in runner.run_live(
user_id=user_id,
session_id=session_id,
live_request_queue=live_request_queue,
run_config=run_config
):
event_json = event.model_dump_json(exclude_none=True, by_alias=True)
logger.debug(f"[SERVER] Event: {event_json}")
await websocket.send_text(event_json)
Session Identifiers
Both user_id and session_id must match the identifiers you used when creating the session via SessionService.create_session(). These can be any string values based on your application's needs (e.g., UUIDs, email addresses, custom tokens). See Get or Create Session for detailed guidance on session identifiers.
Connection Lifecycle in run_live()¶
The run_live() method manages the underlying Live API connection lifecycle automatically:
Connection States:
1. Initialization: Connection established when run_live() is called
2. Active Streaming: Bidirectional communication via LiveRequestQueue (upstream to the model) and run_live() (downstream from the model)
3. Graceful Closure: Connection closes when LiveRequestQueue.close() is called
4. Error Recovery: ADK supports transparent session resumption; enable via RunConfig.session_resumption to handle transient failures. See Live API session resumption for details.
What run_live() Yields¶
The run_live() method yields a stream of Event objects in real-time as the agent processes user input and generates responses. Understanding the different event types helps you build responsive UIs that handle text, audio, transcriptions, tool calls, metadata, and errors appropriately. Each event type is explained in detail in Events.
| Event Type | Description |
|---|---|
| Text events | Model's text responses when using response_modalities=["TEXT"]; includes partial, turn_complete, and interrupted flags for streaming UI management |
| Audio events with inline data | Raw audio bytes (inline_data) streamed in real-time when using response_modalities=["AUDIO"]; ephemeral (not persisted to session) |
| Audio events with file data | Audio aggregated into files and stored in artifacts; contains file_data references instead of raw bytes; can be persisted to session history |
| Metadata events | Token usage information (prompt_token_count, candidates_token_count, total_token_count) for cost monitoring and quota tracking |
| Transcription events | Speech-to-text for user input (input_transcription) and model output (output_transcription) when transcription is enabled in RunConfig |
| Tool call events | Function call requests from the model; ADK handles execution automatically |
| Error events | Model errors and connection issues with error_code and error_message fields |
Source Reference
See the complete event type handling implementation in runners.py
When run_live() Exits¶
The run_live() event loop can exit under various conditions. Understanding these exit scenarios is crucial for proper resource cleanup and error handling:
| Exit Condition | Trigger | Graceful? | Description |
|---|---|---|---|
| Manual close | live_request_queue.close() |
✅ Yes | User explicitly closes the queue, sending LiveRequest(close=True) signal |
| All agents complete | Last agent in SequentialAgent calls task_completed() |
✅ Yes | After all sequential agents finish their tasks |
| Session timeout | Live API duration limit reached | ⚠️ Connection closed | Session exceeds maximum duration (see limits below) |
| Early exit | end_invocation flag set |
✅ Yes | Set during preprocessing or by tools/callbacks to terminate early |
| Empty event | Queue closure signal | ✅ Yes | Internal signal indicating event stream has ended |
| Errors | Connection errors, exceptions | ❌ No | Unhandled exceptions or connection failures |
SequentialAgent Behavior
When using SequentialAgent, the task_completed() function does NOT exit your application's run_live() loop. It only signals the end of the current agent's work, triggering a seamless transition to the next agent in the sequence. Your event loop continues receiving events from subsequent agents. The loop only exits when the last agent in the sequence completes.
Learn More
For session resumption and connection recovery details, see Live API session resumption. For multi-agent workflows, see Best practices for multi-agent workflows.
Events Saved to ADK Session¶
Not all events yielded by run_live() are persisted to the ADK Session. When run_live() exits, only certain events are saved to the session while others remain ephemeral. Understanding which events are saved versus which are ephemeral is crucial for applications that use session persistence, resumption, or need to review conversation history.
Source Reference
See session event persistence logic in runners.py
Events Saved to the ADK Session:
These events are persisted to the ADK Session and available in session history:
- Audio Events with File Data: Saved to ADK
Sessiononly ifRunConfig.save_live_blobisTrue; audio data is aggregated into files in artifacts withfile_datareferences - Usage Metadata Events: Always saved to track token consumption across the ADK
Session - Non-Partial Transcription Events: Final transcriptions are saved; partial transcriptions are not persisted
- Function Call and Response Events: Always saved to maintain tool execution history
- Other Control Events: Most control events (e.g.,
turn_complete,finish_reason) are saved
Events NOT Saved to the ADK Session:
These events are ephemeral and only yielded to callers during active streaming:
- Audio Events with Inline Data: Raw audio
Blobdata ininline_datais never saved to the ADKSession(only yielded for real-time playback) - Partial Transcription Events: Only yielded for real-time display; final transcriptions are saved
Audio Persistence
To save audio conversations to the ADK Session for review or resumption, enable RunConfig.save_live_blob = True. This persists audio streams to artifacts. See save_live_blob for configuration details.
Understanding Live API Connections and Sessions¶
When building ADK Gemini Live API Toolkit applications, it's essential to understand how ADK manages the communication layer between itself and the Live API backend. This section explores the fundamental distinction between connections (the WebSocket transport links that ADK establishes to Live API) and sessions (the logical conversation contexts maintained by Live API). Unlike traditional request-response APIs, the Bidi-streaming architecture introduces unique constraints: connection timeouts, session duration limits that vary by modality (audio-only vs audio+video), finite context windows, and concurrent session quotas that differ between Gemini Live API and Gemini Live API (Agent Platform).
ADK Session vs Live API Session¶
Understanding the distinction between ADK Session and Live API session is crucial for building reliable streaming applications with ADK Gemini Live API Toolkit.
ADK Session (managed by SessionService):
- Persistent conversation storage for conversation history, events, and state, created via SessionService.create_session()
- Storage options: in-memory, database (PostgreSQL/MySQL/SQLite), or Agent Platform
- Survives across multiple run_live() calls and application restarts (with the persistent SessionService)
Live API session (managed by Live API backend):
- Maintained by the Live API during the run_live() event loop is running, and destroyed when streaming ends by calling LiveRequestQueue.close()
- Subject to platform duration limits, and can be resumed across multiple connections using session resumption handles (see How ADK Manages Session Resumption below)
How they work together:
- When
run_live()is called: - Retrieves the ADK
SessionfromSessionService - Initializes the Live API session with conversation history from
session.events - Streams events bidirectionally with the Live API backend
- Updates the ADK
Sessionwith new events as they occur - When
run_live()ends - The Live API session terminates
- The ADK
Sessionpersists - When
run_live()is called again or the application is restarted:- ADK loads the history from the ADK
Session - Creates a new Live API session with that context
- ADK loads the history from the ADK
In short, ADK Session provides persistent, long-term conversation storage, while Live API sessions are ephemeral streaming contexts. This separation enables production applications to maintain conversation continuity across network interruptions, application restarts, and multiple streaming sessions.
The following diagram illustrates the relationship between ADK Session persistence and ephemeral Live API session contexts, showing how conversation history is maintained across multiple run_live() calls:
sequenceDiagram
participant App as Your Application
participant SS as SessionService
participant ADK_Session as ADK Session<br/>(Persistent Storage)
participant ADK as ADK (run_live)
participant LiveSession as Live API Session<br/>(Ephemeral)
Note over App,LiveSession: First run_live() call
App->>SS: get_session(user_id, session_id)
SS->>ADK_Session: Load session data
ADK_Session-->>SS: Session with events history
SS-->>App: Session object
App->>ADK: runner.run_live(...)
ADK->>LiveSession: Initialize with history from ADK Session
activate LiveSession
Note over ADK,LiveSession: Bidirectional streaming...
ADK->>ADK_Session: Update with new events
App->>ADK: queue.close()
ADK->>LiveSession: Terminate
deactivate LiveSession
Note over LiveSession: Live API session destroyed
Note over ADK_Session: ADK Session persists
Note over App,LiveSession: Second run_live() call (or after restart)
App->>SS: get_session(user_id, session_id)
SS->>ADK_Session: Load session data
ADK_Session-->>SS: Session with events history
SS-->>App: Session object (with previous history)
App->>ADK: runner.run_live(...)
ADK->>LiveSession: Initialize new session with full history
activate LiveSession
Note over ADK,LiveSession: Bidirectional streaming continues...Key insights:
- ADK Session survives across multiple run_live() calls and app restarts
- Live API session is ephemeral - created and destroyed per streaming session
- Conversation continuity is maintained through ADK Session's persistent storage
- SessionService manages the persistence layer (in-memory, database, or Agent Platform)
Now that we understand the difference between ADK Session objects and Live API sessions, let's focus on Live API connections and sessions—the backend infrastructure that powers real-time bidirectional streaming.
Live API Connections and Sessions¶
Understanding the distinction between connections and sessions at the Live API level is crucial for building reliable ADK Gemini Live API Toolkit applications.
Connection: The physical WebSocket link between ADK and the Live API server. This is the network transport layer that carries bidirectional streaming data.
Session: The logical conversation context maintained by the Live API, including conversation history, tool call state, and model context. A session can span multiple connections.
| Aspect | Connection | Session |
|---|---|---|
| What is it? | WebSocket network connection | Logical conversation context |
| Scope | Transport layer | Application layer |
| Can span? | Single network link | Multiple connections via resumption |
| Failure impact | Network error or timeout | Lost conversation history |
Live API Connection and Session Limits by Platform¶
Understanding the constraints of each platform is critical for production planning. Gemini Live API and Gemini Live API (Agent Platform) have different limits that affect how long conversations can run and how many users can connect simultaneously. The most important distinction is between connection duration (how long a single WebSocket connection stays open) and session duration (how long a logical conversation can continue).
| Constraint Type | Gemini Live API (Google AI Studio) |
Gemini Live API (Agent Platform) |
Notes |
|---|---|---|---|
| Connection duration | ~10 minutes | Not documented separately | Each Gemini WebSocket connection auto-terminates; ADK reconnects transparently with session resumption |
| Session Duration (Audio-only) | 15 minutes | 10 minutes | Maximum session duration without context window compression. Both platforms: unlimited with context window compression enabled |
| Session Duration (Audio + video) | 2 minutes | 10 minutes | Gemini has shorter limit for video; Agent Platform treats all sessions equally. Both platforms: unlimited with context window compression enabled |
| Concurrent sessions | 50 (Tier 1) 1,000 (Tier 2+) |
Up to 1,000 | Gemini limits vary by API tier; Agent Platform limit is per Google Cloud project |
Source References
Live API Session Resumption¶
By default, the Live API limits connection duration to approximately 10 minutes—each WebSocket connection automatically closes after this duration. To overcome this limit and enable longer conversations, the Live API provides Session Resumption, a feature that transparently migrates a session across multiple connections. When enabled, the Live API generates resumption handles that allow reconnecting to the same session context, preserving the full conversation history and state.
ADK automates this entirely: When you enable session resumption in RunConfig, ADK automatically handles all reconnection logic—detecting connection closures, caching resumption handles, and reconnecting seamlessly in the background. You don't need to write any reconnection code. Sessions continue seamlessly beyond the 10-minute connection limit, handling connection timeouts, network disruptions, and planned reconnections automatically.
Scope of ADK's Reconnection Management¶
ADK manages the ADK-to-Live API connection (the WebSocket between ADK and the Gemini Live API backend). This is transparent to your application code.
Your application remains responsible for:
- Managing client connections to your application (e.g., user's WebSocket to your FastAPI server)
- Implementing client-side reconnection logic if needed
- Handling network failures between clients and your application
When ADK reconnects to the Live API, your application's event loop continues normally—you keep receiving events from run_live() without interruption. From your application's perspective, the Live API session continues seamlessly.
Configuration:
from google.genai import types
run_config = RunConfig(
session_resumption=types.SessionResumptionConfig()
)
When NOT to Enable Session Resumption:
While session resumption is recommended for most production applications, consider these scenarios where you might not need it:
- Short sessions (<10 minutes): If your sessions typically complete within the ~10 minute connection timeout, resumption adds unnecessary overhead
- Stateless interactions: Request-response style interactions where each turn is independent don't benefit from session continuity
- Development/testing: Simpler debugging when each session starts fresh without carrying over state
- Cost-sensitive deployments: Session resumption may incur additional platform costs or resource usage (verify with your platform)
Best practice: Enable session resumption by default for production, disable only when you have a specific reason not to use it.
How ADK Manages Session Resumption¶
While session resumption is supported by both Gemini Live API and Gemini Live API (Agent Platform), using it directly requires managing resumption handles, detecting connection closures, and implementing reconnection logic. ADK takes full responsibility for this complexity, automatically utilizing session resumption behind the scenes so developers don't need to write any reconnection code. You simply enable it in RunConfig, and ADK handles everything transparently.
ADK's automatic management:
- Initial Connection: ADK establishes a WebSocket connection to Live API
- Handle Updates: Throughout the session, the Live API sends
session_resumption_updatemessages containing updated handles. ADK automatically caches the latest handle inInvocationContext.live_session_resumption_handle go_awayWarning: Before the limit is reached, the Live API can send ago_awaymessage announcing that the connection is about to be dropped. ADK treats this as a reconnection request and re-establishes the connection before it is closed, so the handover is invisible to your application- Graceful Connection Close: When the ~10 minute connection limit is reached, the WebSocket closes gracefully (no exception)
- Automatic Reconnection: ADK's internal loop detects the close and automatically reconnects using the most recent cached handle
- Session Continuation: The same session continues seamlessly with full context preserved
Implementation Detail
During reconnection, ADK retrieves the cached handle from InvocationContext.live_session_resumption_handle and includes it in the new LiveConnectConfig for the live.connect() call. This is handled entirely by ADK's internal reconnection loop—developers never need to access or manage these handles directly.
Reconnection attempts are capped
ADK retries a maximum of 5 consecutive reconnections
(DEFAULT_MAX_RECONNECT_ATTEMPTS).
The counter resets as soon as a new connection is successfully established, so a
long-running conversation is not limited to five reconnections in total — only to five
failures in a row. Note that ADK only retries at all when a resumption handle has been
cached; without session_resumption enabled, the first connection drop propagates
straight out of run_live(). Same when the cap is exceeded — your application must
handle it (typically by closing the WebSocket and letting the client start a new
session).
Sequence Diagram: Automatic Reconnection¶
The following sequence diagram illustrates how ADK automatically manages Live API session resumption when the ~10 minute connection timeout is reached. ADK detects the graceful close, retrieves the cached resumption handle, and reconnects transparently without application code changes:
sequenceDiagram
participant App as Your Application
participant ADK as ADK (run_live)
participant WS as WebSocket Connection
participant API as Live API (Gemini/Agent Platform)
participant LiveSession as Live Session Context
Note over App,LiveSession: Initial Connection (with session resumption enabled)
App->>ADK: runner.run_live(run_config=RunConfig(session_resumption=...))
ADK->>API: WebSocket connect()
activate WS
API->>LiveSession: Create new session
activate LiveSession
Note over ADK,API: Bidirectional Streaming (0-10 minutes)
App->>ADK: send_content(text) / send_realtime(audio)
ADK->>API: → Content via WebSocket
API->>LiveSession: Update conversation history
API-->>ADK: ← Streaming response
ADK-->>App: ← yield event
Note over API,LiveSession: Live API sends resumption handle updates
API-->>ADK: session_resumption_update { new_handle: "abc123" }
ADK->>ADK: Cache handle in InvocationContext
Note over WS,API: ~10 minutes elapsed - Connection timeout
API->>WS: Close WebSocket (graceful close)
deactivate WS
Note over LiveSession: Session context preserved
Note over ADK: Graceful close detected - No exception raised
ADK->>ADK: while True loop continues
Note over ADK,API: Automatic Reconnection
ADK->>API: WebSocket connect(session_resumption.handle="abc123")
activate WS
API->>LiveSession: Attach to existing session
API-->>ADK: Session resumed with full context
Note over ADK,API: Bidirectional Streaming Continues
App->>ADK: send_content(text) / send_realtime(audio)
ADK->>API: → Content via WebSocket
API->>LiveSession: Update conversation history
API-->>ADK: ← Streaming response
ADK-->>App: ← yield event
Note over App,LiveSession: Session continues until duration limit or explicit close
deactivate WS
deactivate LiveSessionEvents and Session Persistence
For details on which events are saved to the ADK Session versus which are only yielded during streaming, see Events saved to ADK Session.
Live API Context Window Compression¶
Problem: Live API sessions face two critical constraints that limit conversation duration. First, session duration limits impose hard time caps: without compression, Gemini Live API limits audio-only sessions to 15 minutes and audio+video sessions to just 2 minutes, while Agent Platform limits all sessions to 10 minutes. Second, context window limits restrict conversation length: models have finite token capacities (128k tokens for gemini-2.5-flash-native-audio-preview-12-2025, 32k-128k for Agent Platform models). Long conversations—especially extended customer support sessions, tutoring interactions, or multi-hour voice dialogues—will hit either the time limit or the token limit, causing the session to terminate or lose critical conversation history.
Solution: Context window compression solves both constraints simultaneously. It uses a sliding-window approach to automatically compress or summarize earlier conversation history when the token count reaches a configured threshold. The Live API preserves recent context in full detail while compressing older portions. Critically, enabling context window compression extends session duration to unlimited time, removing the session duration limits (15 minutes for audio-only / 2 minutes for audio+video on Gemini Live API; 10 minutes for all sessions on Agent Platform) while also preventing token limit exhaustion. However, there is a trade-off: as the feature summarizes earlier conversation history rather than retaining it all, the detail of past context will be gradually lost over time. The model will have access to compressed summaries of older exchanges, not the full verbatim history.
Platform Behavior and Official Limits¶
Session duration management and context window compression are Live API platform features. ADK configures these features via RunConfig and passes the configuration to the Live API, but the actual enforcement and implementation are handled by the Gemini Live API backends.
Important: The duration limits and "unlimited" session behavior mentioned in this guide are based on current Live API behavior. These limits are subject to change by Google. Always verify current session duration limits and compression behavior in the official documentation:
ADK provides an easy way to configure context window compression through RunConfig. However, developers are responsible for appropriately configuring the compression parameters (trigger_tokens and target_tokens) based on their specific requirements—model context window size, expected conversation patterns, and quality needs:
from google.genai import types
from google.adk.agents.run_config import RunConfig
# For gemini-2.5-flash-native-audio-preview-12-2025 (128k context window)
run_config = RunConfig(
context_window_compression=types.ContextWindowCompressionConfig(
trigger_tokens=100000, # Start compression at ~78% of 128k context
sliding_window=types.SlidingWindow(
target_tokens=80000 # Compress to ~62% of context, preserving recent turns
)
)
)
How it works:
When context window compression is enabled:
- The Live API monitors the total token count of the conversation context
- When the context reaches the
trigger_tokensthreshold, compression activates - Earlier conversation history is compressed or summarized using a sliding window approach
- Recent context (last
target_tokensworth) is preserved in full detail - Two critical effects occur simultaneously:
- Session duration limits are removed (no more 15-minute/2-minute caps on Gemini Live API or 10-minute caps on Agent Platform)
- Token limits are managed (sessions can continue indefinitely regardless of conversation length)
Choosing appropriate thresholds:
- Set
trigger_tokensto 70-80% of your model's context window to allow headroom - Set
target_tokensto 60-70% to provide sufficient compression - Test with your actual conversation patterns to optimize these values
Parameter Selection Strategy:
The examples above use 78% for trigger_tokens and 62% for target_tokens. Here's the reasoning:
- trigger_tokens at 78%: Provides a buffer before hitting the hard limit
- Allows room for the current turn to complete
- Prevents mid-response compression interruptions
-
Typical conversations can continue for several more turns
-
target_tokens at 62%: Leaves substantial room after compression
- 16 percentage points (78% - 62%) freed up per compression
- Allows for multiple turns before next compression
-
Balances preservation of context with compression frequency
-
Adjusting for your use case:
- Long turns (detailed technical discussions): Increase buffer → 70% trigger, 50% target
- Short turns (quick Q&A): Tighter margins → 85% trigger, 70% target
- Context-critical (requires historical detail): Higher target → 80% trigger, 70% target
- Performance-sensitive (minimize compression overhead): Lower trigger → 70% trigger, 50% target
Always test with your actual conversation patterns to find optimal values.
When NOT to Use Context Window Compression¶
While compression enables unlimited session duration, consider these trade-offs:
Context Window Compression Trade-offs:
| Aspect | With Compression | Without Compression | Best For |
|---|---|---|---|
| Session Duration | Unlimited | 15 min (audio) 2 min (video) Gemini 10 min Agent Platform |
Compression: Long sessions No compression: Short sessions |
| Context Quality | Older context summarized | Full verbatim history | Compression: General conversation No compression: Precision-critical |
| Latency | Compression overhead | No overhead | Compression: Async scenarios No compression: Real-time |
| Memory Usage | Bounded | Grows with session | Compression: Long sessions No compression: Short sessions |
| Implementation | Configure thresholds | No configuration | Compression: Production No compression: Prototypes |
Common Use Cases:
✅ Enable compression when: - Sessions need to exceed platform duration limits (15/2/10 minutes) - Extended conversations may hit token limits (128k for 2.5-flash) - Customer support sessions that can last hours - Educational tutoring with long interactions
❌ Disable compression when: - All sessions complete within duration limits - Precision recall of early conversation is critical - Development/testing phase (full history aids debugging) - Quality degradation from summarization is unacceptable
Best practice: Enable compression only when you need sessions longer than platform duration limits OR when conversations may exceed context window token limits.
Best Practices for Live API Connection and Session Management¶
Essential: Enable Session Resumption¶
- ✅ Always enable session resumption in RunConfig for production applications
- ✅ This enables ADK to automatically handle Gemini's ~10 minute connection timeouts transparently
- ✅ Sessions continue seamlessly across multiple WebSocket connections without user interruption
- ✅ Session resumption handle caching and management
from google.genai import types
run_config = RunConfig(
response_modalities=["AUDIO"],
session_resumption=types.SessionResumptionConfig()
)
Recommended: Enable Context Window Compression for Unlimited Sessions¶
- ✅ Enable context window compression if you need sessions longer than 15 minutes (audio-only) or 2 minutes (audio+video)
- ✅ Once enabled, session duration becomes unlimited—no need to monitor time-based limits
- ✅ Configure
trigger_tokensandtarget_tokensbased on your model's context window - ✅ Test compression settings with realistic conversation patterns
- ⚠️ Use judiciously: Compression adds latency during summarization and may lose conversational nuance—only enable when extended sessions are truly necessary for your use case
from google.genai import types
from google.adk.agents.run_config import RunConfig
run_config = RunConfig(
response_modalities=["AUDIO"],
session_resumption=types.SessionResumptionConfig(),
context_window_compression=types.ContextWindowCompressionConfig(
trigger_tokens=100000,
sliding_window=types.SlidingWindow(target_tokens=80000)
)
)
Optional: Monitor Session Duration¶
Only applies if NOT using context window compression:
- ✅ Focus on session duration limits, not connection timeouts (ADK handles those automatically)
- ✅ Gemini Live API: Monitor for 15-minute limit (audio-only) or 2-minute limit (audio+video)
- ✅ Gemini Live API (Agent Platform): Monitor for 10-minute session limit
- ✅ Warn users 1-2 minutes before session duration limits
- ✅ Implement graceful session transitions for conversations exceeding session limits
Concurrent Live API Sessions and Quota Management¶
Problem: Production voice applications typically serve multiple users simultaneously, each requiring their own Live API session. However, both Gemini Live API and Gemini Live API (Agent Platform) impose strict concurrent session limits that vary by platform and pricing tier. Without proper quota planning and session management, applications can hit these limits quickly, causing connection failures for new users or degraded service quality during peak usage.
Solution: Understand platform-specific quotas, design your architecture to stay within concurrent session limits, implement session pooling or queueing strategies when needed, and monitor quota usage proactively. ADK handles individual session lifecycle automatically, but developers must architect their applications to manage multiple concurrent users within quota constraints.
Understanding Concurrent Live API Session Quotas¶
Both platforms limit how many Live API sessions can run simultaneously, but the limits and mechanisms differ significantly:
Gemini Live API (Google AI Studio) - Tier-based quotas:
| Tier | Concurrent Sessions | TPM (Tokens Per Minute) | Access |
|---|---|---|---|
| Free Tier | Limited* | 1,000,000 | Free API key |
| Tier 1 | 50 | 4,000,000 | Pay-as-you-go |
| Tier 2 | 1,000 | 10,000,000 | Higher usage tier |
| Tier 3 | 1,000 | 10,000,000 | Higher usage tier |
*Free tier concurrent session limits are not explicitly documented but are significantly lower than paid tiers.
Source
Gemini Live API (Agent Platform) - Project-based quotas:
| Resource Type | Limit | Scope |
|---|---|---|
| Concurrent live bidirectional connections | 10 per minute | Per project, per region |
| Maximum concurrent sessions | Up to 1,000 | Per project |
| Session creation/deletion/update | 100 per minute | Per project, per region |
Requesting a quota increase:

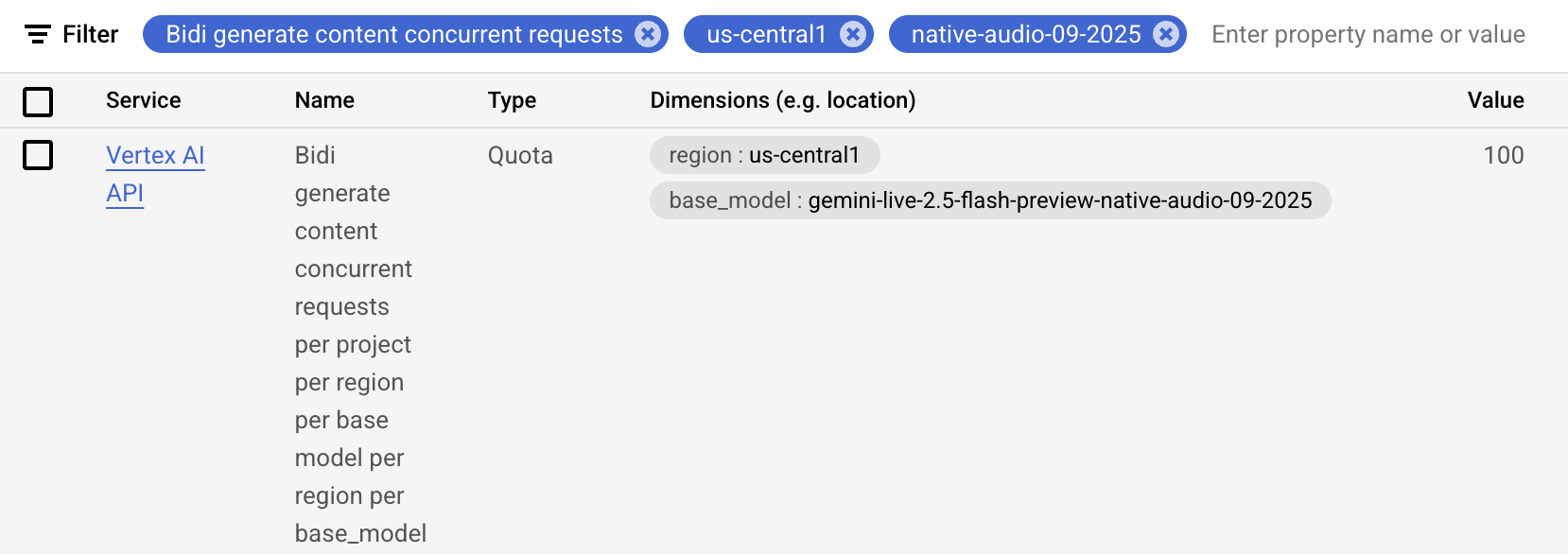

To request an increase for Live API concurrent sessions, navigate to the Quotas page in the Google Cloud Console. Filter for the quota named "Bidi generate content concurrent requests" to find quota values for each project, region and base model, and submit a quota increase request. You'll need the Quota Administrator role (roles/servicemanagement.quotaAdmin) to make the request. See View and manage quotas for detailed instructions.
Key differences:
-
Gemini Live API: Concurrent session limits scale dramatically with API tier (50 → 1,000 sessions). Best for applications with unpredictable or rapidly scaling user bases willing to pay for higher tiers.
-
Gemini Live API (Agent Platform): Rate-limited by connection establishment rate (10/min) but supports up to 1,000 total concurrent sessions. Best for enterprise applications with gradual scaling patterns and existing Google Cloud infrastructure. Additionally, you can request quota increases to prepare for production deployments with higher concurrency requirements.
Architectural Patterns for Managing Quotas¶
Once you understand your concurrent session quotas, the next challenge is architecting your application to operate effectively within those limits. The right approach depends on your expected user concurrency, scaling requirements, and tolerance for queueing. This section presents two architectural patterns—from simple direct mapping for low-concurrency applications to session pooling with queueing for applications that may exceed quota limits during peak usage. Choose the pattern that matches your current scale and design it to evolve as your user base grows.
Choosing the Right Architecture:
Start: Designing Quota Management
|
v
Expected Concurrent Users?
/ \
< Quota Limit > Quota Limit or Unpredictable
| |
v v
Pattern 1: Direct Mapping Pattern 2: Session Pooling
- Simple 1:1 mapping - Queue waiting users
- No quota logic - Graceful degradation
- Fast development - Peak handling
| |
v v
Good for: Good for:
- Prototypes - Production at scale
- Small teams - Unpredictable load
- Controlled users - Public applications
Quick Decision Guide:
| Factor | Direct Mapping | Session Pooling |
|---|---|---|
| Expected users | Always < quota | May exceed quota |
| User experience | Always instant | May wait during peaks |
| Implementation complexity | Low | Medium |
| Operational overhead | None | Monitor queue depth |
| Best for | Prototypes, internal tools | Production, public apps |
Pattern 1: Direct Mapping (Simple Applications)¶
For small-scale applications where concurrent users will never exceed quota limits, create a dedicated Live API session for each connected user with a simple 1:1 mapping:
- When a user connects: Immediately start a
run_live()session for them - When they disconnect: The session ends
- No quota management logic: Assumes your total concurrent users will always stay below your quota limits
This is the simplest possible architecture and works well for prototypes, development environments, and small-scale applications with predictable user loads.
Pattern 2: Session Pooling with Queueing¶
For applications that may exceed concurrent session limits during peak usage, track the number of active Live API sessions and enforce your quota limit at the application level:
- When a new user connects: Check if you have available session slots
- If slots are available: Start a session immediately
- If you've reached your quota limit:
- Place the user in a waiting queue
- Notify them they're waiting for an available slot
- As sessions end: Automatically process the queue to start sessions for waiting users
This provides graceful degradation—users wait briefly during peak times rather than experiencing hard connection failures.
